These bolts are primarily used on Pre 2012 BMWs (E series models & more, Z4 up to 2017), with the only exception to this rule being the few F series models produced prior to 2012, which use an M14 x 1.25 bolt.
Compatible with, but not limited to -
Z1: 88 – 91, Z4: 03 – 17, 1 Series: 04 – 12, 1502, 1602, 1802:
62 – 77, 2000 - 3000: 65 – 77, 3 Series > 390X, E21, E30, E36, E46, E90L, E91, E92, E93: 75 – 12, 5 Series > E12, E28, E34, E39, E560X, E60, E61: 72 – 10, 6 Series Convertible/Coupe: 04 – 11, 6 Series Incl M6: 68 – 90, 7 Series: 77 – 01 (97-98 Limo), 8 Series: 90 – 99, M1: 78 – 81, M3: 86 – 13, M5 (Various): 80 – 11, M6 Cabrio: 06 – 10, M6: 05 – 11, X1: 09 – 14, Z3/Z3M: 95 – 03, Z4M: 06 – 10, Z8 Roadster: 00 – 03
Please double check your fitments - if you have a BMW with standard alloy wheels and you know you need an M12 x 1.5 bolt this will be the right fit.

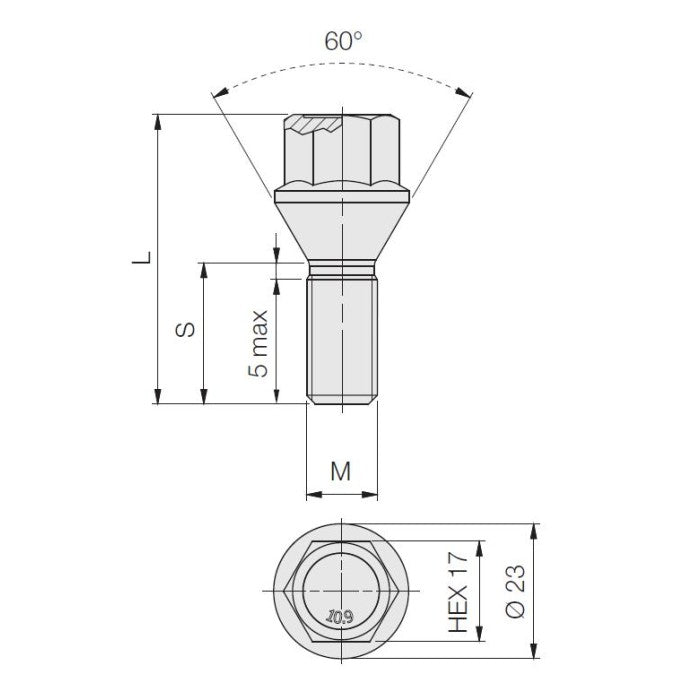

- Thread: M12 x 1.5
- Length: 50mm
- Thread Length: 26mm
- Bolt Width: 23mm
- Seat: 60 Degree Taper
- Hex: 17mm

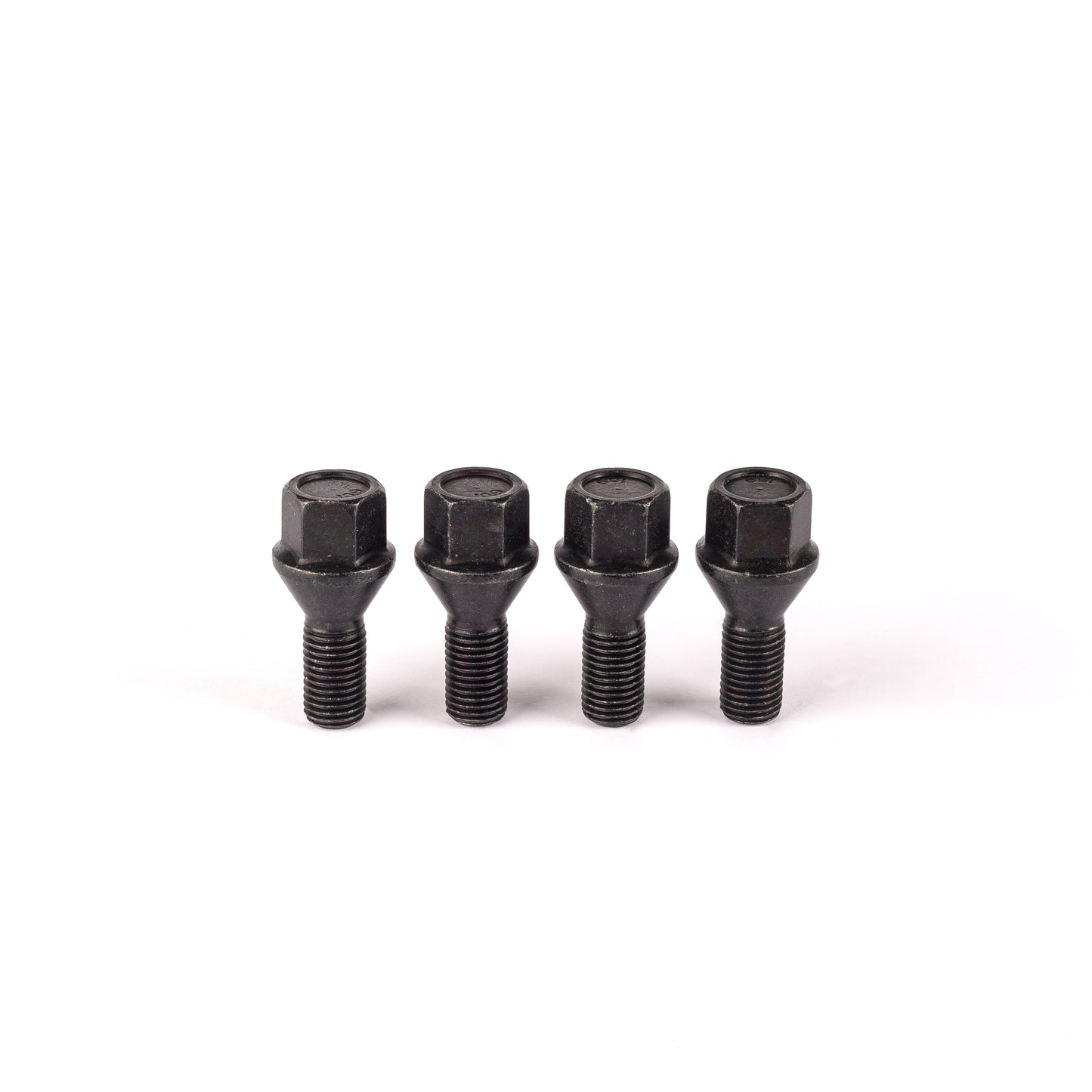

- Finish: Black Galvanised
- Material: High-tensile Carbon Steel (10.9)
